1/8ID - 1/4OD tubing
and connections is fully compatible with our new OzoneLab™ OL80
and OL100 ozone systems. 3/16ID
- 5/16OD tubing is available primarily as a replacement component(s)
for our older GE60 systems models. (manufactured
until October 2002).

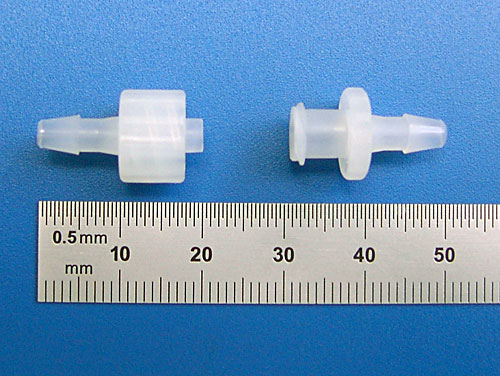

Kynar™ Luer
Lock Fittings - (For 1/8ID & 1/4OD tubing only)
 |
 |
Female -
Kynar™ Body:
| ID |
A |
B |
C |
| 1/8 |
0.078 |
0.125 |
0.450 |
| ID |
D |
E |
F |
| 1/8 |
0.100 |
0.183 |
0.250 |
|
 |
Male - Kynar™ Body:
| ID |
A |
B |
C |
| 1/8 |
0.078 |
0.125 |
0.450 |
| ID |
D |
E |
F |
| 1/8 |
0.100 |
0.183 |
0.250 |
|
| KynarT Female & Female
Luer Lock Coupler |
 |
Luer Lock
Protective Caps with strap
|
 |

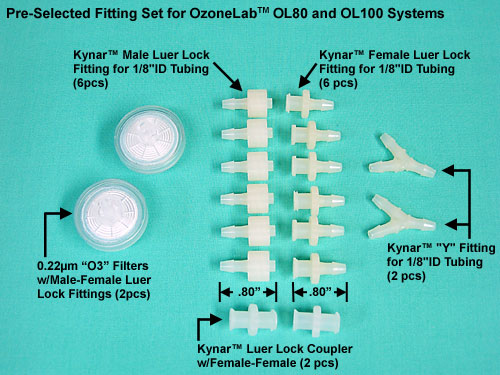

Pre-Selected
Tubing & Fitting Sets for OzoneLab™ OL80 and OL100 systems
|
20FT
Laboratory |
5FT
Medical |
10FT
Medical |
| Kynar™ Male
Luer Lock Fitting for 1/8"ID Tubing |
6
pcs |
6
pcs |
6
pcs |
| Kynar™ Female
Luer Lock Fitting for 1/8"ID Tubing |
6
pcs |
6
pcs |
6
pcs |
| Kynar™ Luer
Lock Coupler w/Female-Female |
2
pcs |
2
pcs |
2
pcs |
| Kynar™ "Y" Fitting
for 1/8"ID Tubing |
2
pcs |
2
pcs |
2
pcs |
| 0.22µm “O3” Filters
w/Male-Female Luer Lock Fittings |
2
pcs |
2
pcs |
2
pcs |
| "O2" PVC
Tubing (Clear or Blue / 1/8"ID & 1/4"OD) |
N/A |
5FT |
10FT |
| “O2” & "O3" Silicone
Tubing (Milky / 1/8"ID & 1/4"OD) |
N/A |
5FT |
10FT |
| “O2” & "O3" Teflon
Tubing (1/8"ID & 3/16"OD) |
20FT |
N/A |
N/A |
Miscellaneous
Kynar™ Fittings
Tubing & Fitting
Assembly Example
Because every client
has different needs for different lengths of tubing, it is impossible
for us to provide all tubing lines already assembled.
In this example,
we are using Blue Oxygen Tubing. In each tubing set, there will
be the tubing itself, and a number of Female and Male Luer Lock Connectors.
Use Male connectors to make needed tubing connections.
 |
 |
Inserting Male
Luer Lock Connector
into tubing |
Attaching
tubing to generator |
|
