Sample
Ozone Output Test Report

Comparison
OL80 & OL100
Comparison
GE60 & OL80 & OL100
OL100 Information

Each ozone generator is tested and calibrated separately using 2" H2O back pressure.

OzoneLab™ instruments are designed for low flow/high output applications and are not suitable for flow rates above 1000ml/min due to the size of orifices in the ozone gas flow path. Gas Pressure is 0-3 p.s.i. (For applications dealing with higher pressures - please contact us for more info and/or consultation).

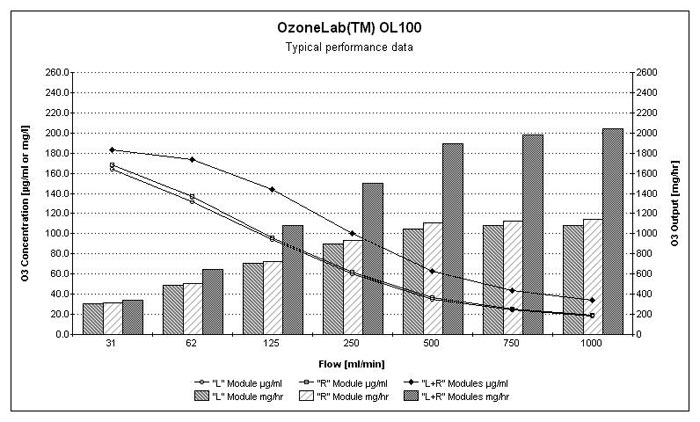

Ozone Concentration [µg/ml] versus Ozone Output [mg/hr]

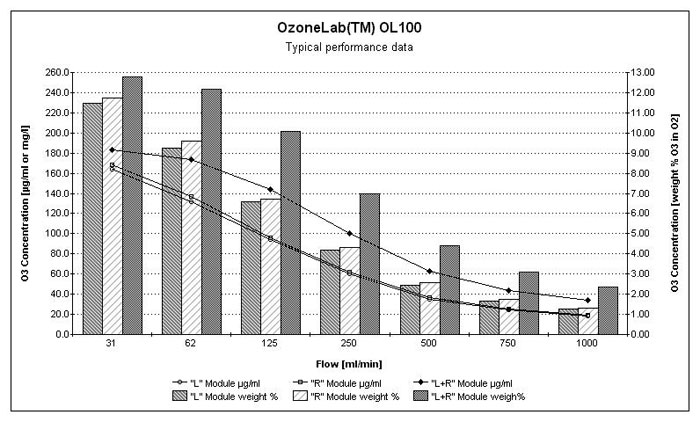

Ozone Concentration [µg/ml] versus Ozone Concentration [weight % 03 in 02]
