The
Hand Switch is recommended for steam
sauna's as a safety device, providing the client (from
within the sauna) control of heat & ozone production in case
of emergency.
It is also
ideal for virtually any application (limited by 12Amp/110-120VAC)
that would benefit from remote switching without exposing the
switch or extended wires/cables to danger of being damaged
OR risking electrical shock in unfavorable environments.
Product
Notes:
- For indoor
use only
- Main unit
size is 3.5 x 2 x 2.5 (H x W x D) + air inlet & power
cord not included in measurements
- Air balloon
size is 2 x 5" (DIMxL)
- Tubing
size is 1/8"ID & 1/4"OD and 12FT length (tubing
lengths up to 50FT available upon request)
- Maximum
load is 12Amp/120VAC (1400W)
- UL listed
How it
works:
- The Tubing
of the air balloon assembly must be attached to the switch
port on the bottom side of the main unit.
- The unit
is plugged into a standard North American power outlet (110-120VAC)
- The appliance
to be controlled ON/OFF is plugged into the main unit 110-120VAC
power outlet.
- The action
of alternated switching ON/OFF the appliance is achieved
by squeezing the air balloon (ozone resistant).
|

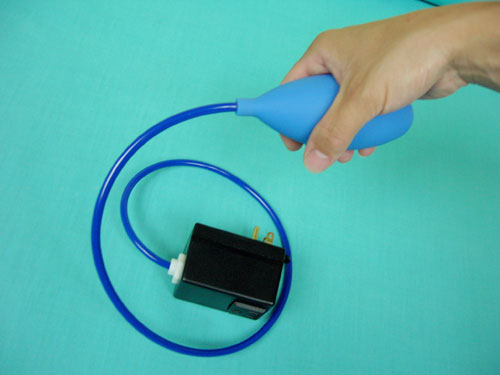

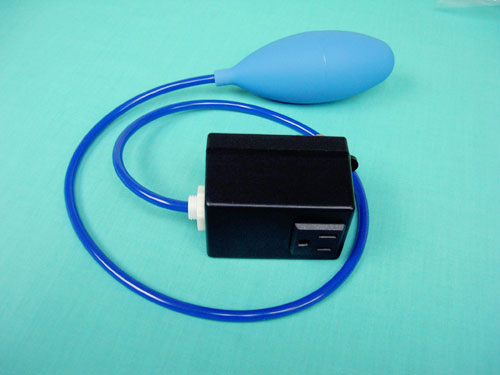

Pictures
do not illustrate the 12 foot included tubing (shortened
for picture purposes)

|
OzoneLab™ Hand
Switch
