This small, foot operated device allows for the use of OzoneLab™ instruments in a wide variety of applications requiring external control of the release/dispensing of ozone gas. Each footswitch is supplied with molded-on-cord connectors and are directly compatible with EXT ports.

Usage conditions:

• Before turning the OzoneLab™ instrument "ON", establish connection between selected EXT Port and the Foot Switch
• The Foot Switch can be used only with OzoneLab™ ozone generators equipped with:
  • EXT Ozone Control Port
    • The ozone production ON/OFF control
    • The flow of ozone gas ON/OFF control
    • Standard on all OzoneLab™ instruments produced after 1.1.2004
  • EXT Syringe Control Port
    • The flow of ozone gas ON/OFF control
    • Standard on OzoneLab™ instruments equipped with "S" option and produced after 1.1.2005.

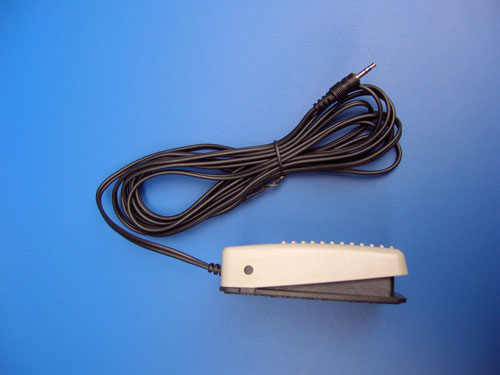

Top/Bottom/Side Views

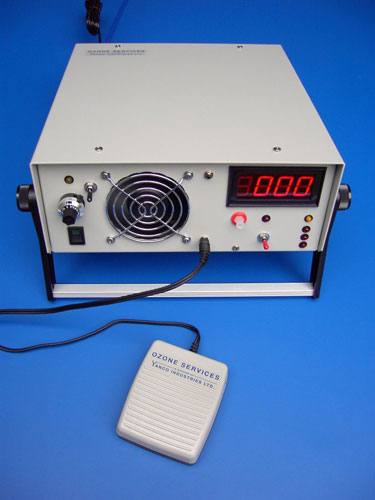

Attached to OL80F/DST

Setup Examples

The below highlighted examples are an attempt to try and allow clients to visualize a specific ozone generator application setups. These examples represent two of many different possible applications.

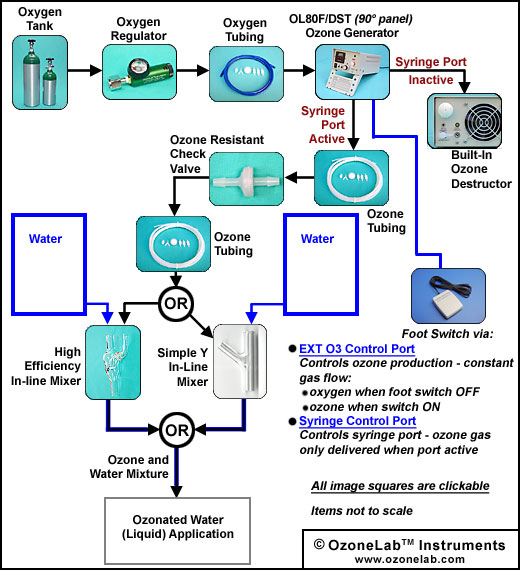

Colon Therapy Setup using a High Efficiency Diffuser to mix water and ozone from an OL80F/DST Ozone Generator fed with oxygen from an Oxygen Tank.  The ozone flow and production is controlled via the Foot Switch through either the EXT O3 Control Port or by way of the Syringe Control Port.

Ozone Dispensing Hand-piece fed with ozone using the OL80F/DST Ozone Generator fed with oxygen from an Oxygen Tank.  The ozone flow and production is controlled via the Foot Switch through either the EXT O3 Control Port or by way of the Syringe Control Port.
